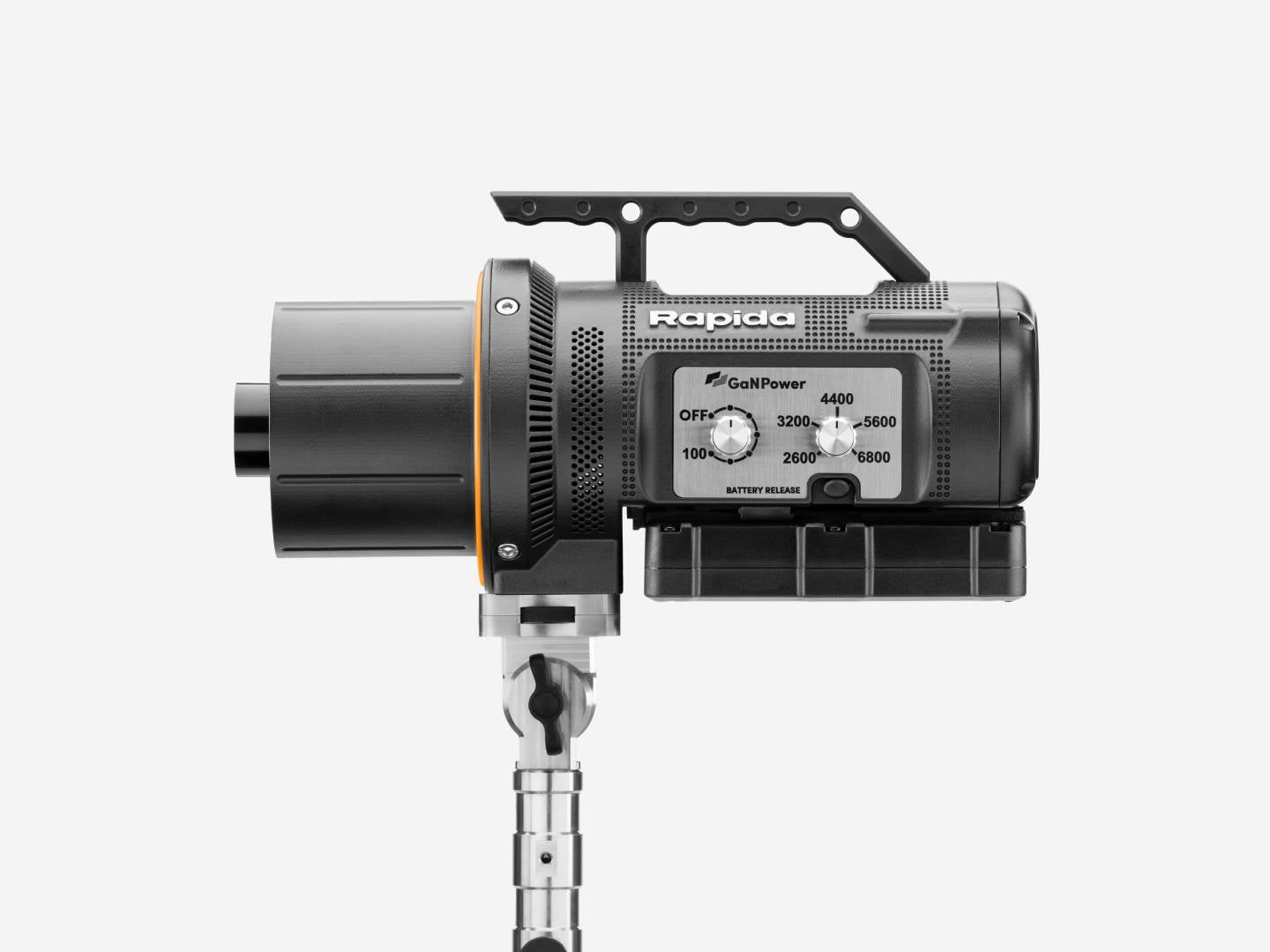

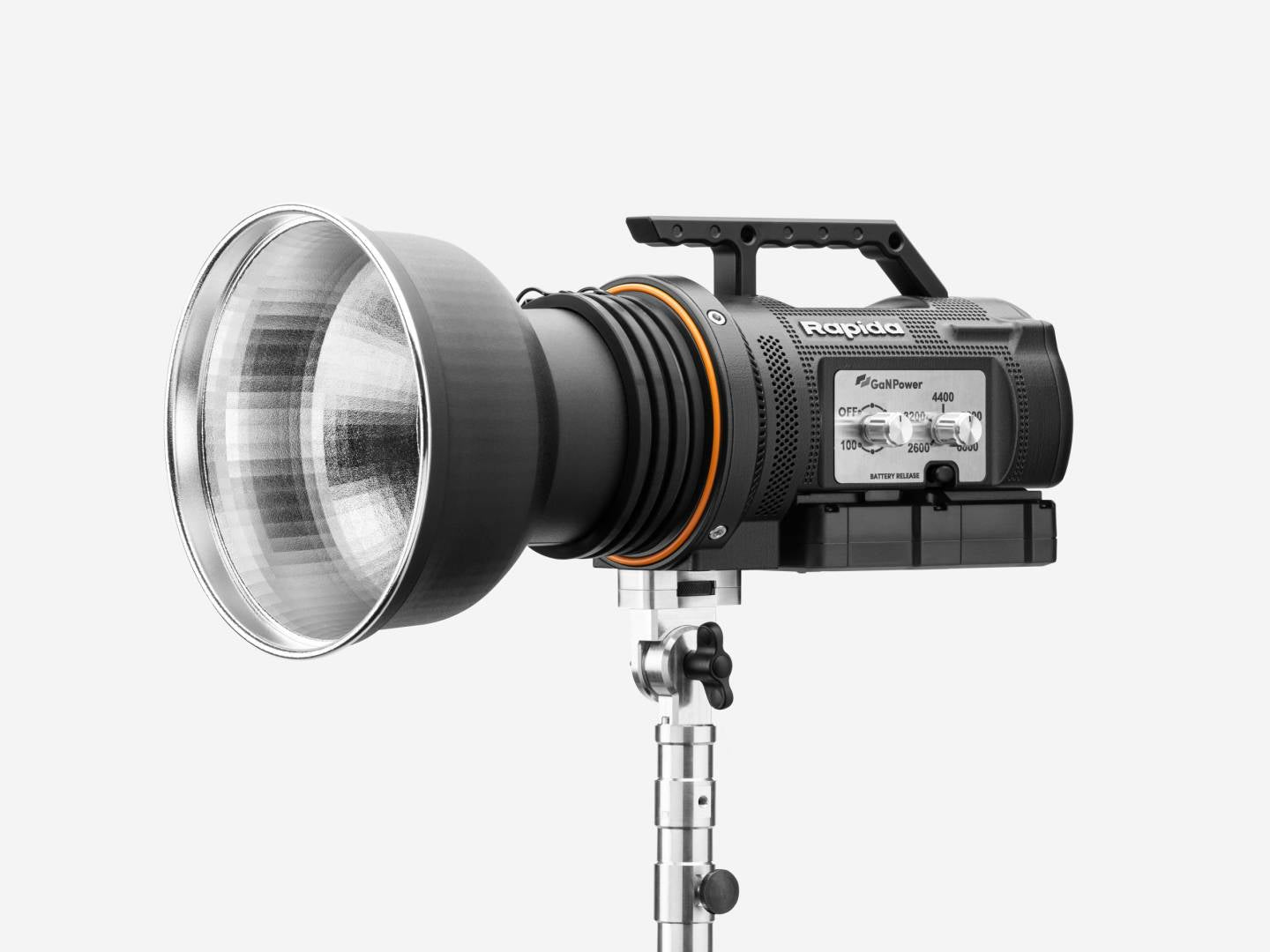

Maxima Rapida delivers studio-grade cinematic lighting in a lightweight, battery-first design. Weighing just 1.8 kg, Rapida features direct V‑Mount* support, Profoto® and Bowens® compatibility, 23.000 lumens, IP54 weather protection, and a wide bi-color control from 2.600K to 6.800K.
Rapida specifications
| Light Source | Bi-Color 2600K to 6800K COB LED |
|---|---|
| Luminous Output | 23000 lumens |

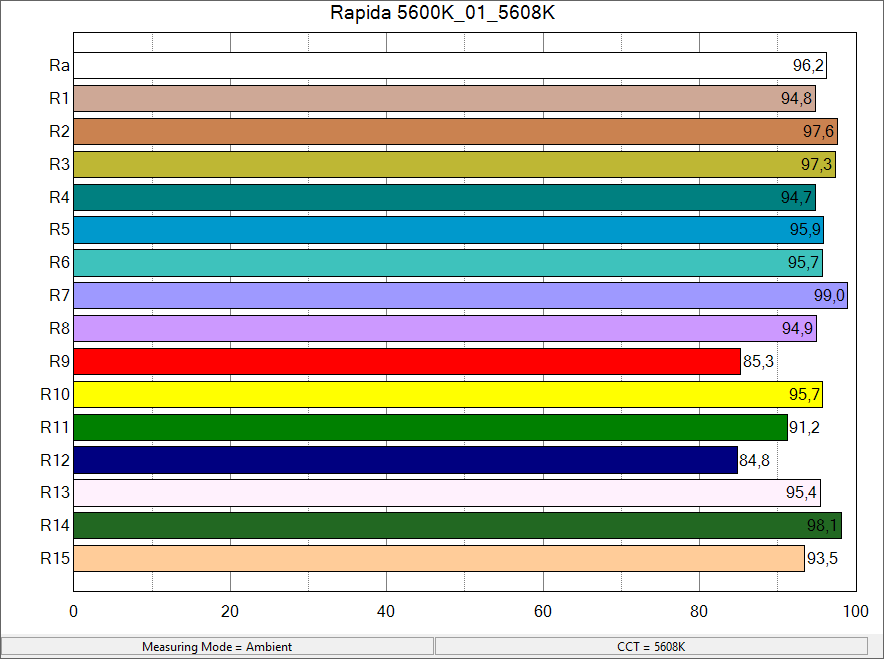

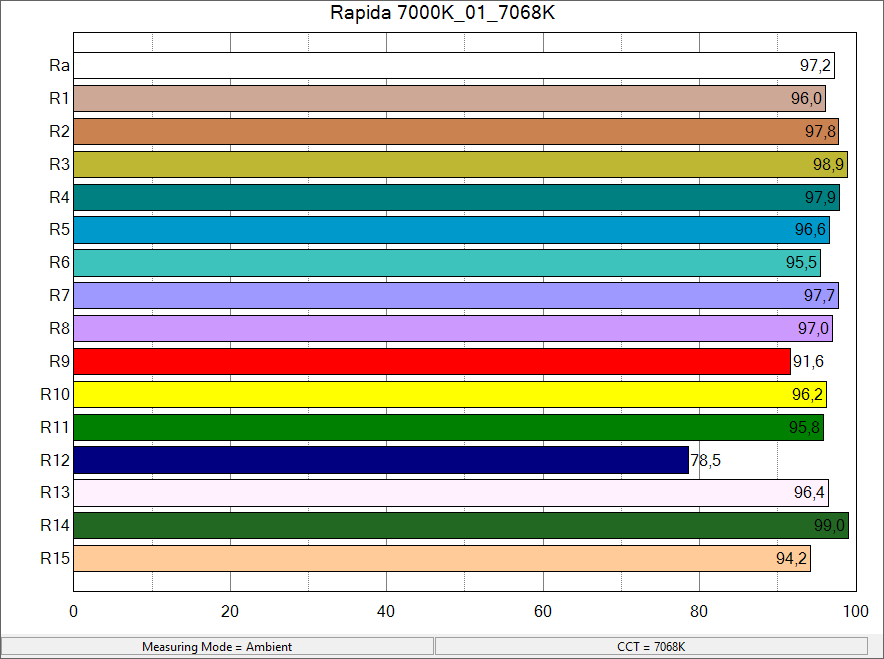

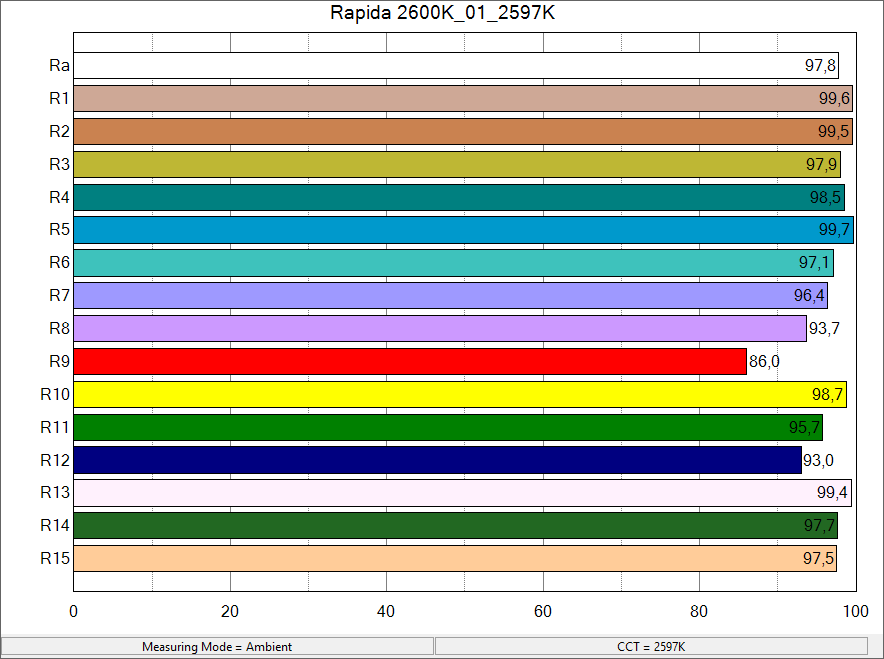

| Color rendition R9 | 97.1 (extended CRI) |
| Color rendition TLCI | 98 |
| Engine | Maxima GaNPOWER |
| Processor | 32-bit Arm® Cortex®-M7 |
| Optical system | Profoto® and Bowens mounts |
| Cooling | Patented MicroCore copper and Aluminum heatsink |
| Noise level | 19dBa |
| Flicker-free operation | Up to 200.000 fps |
| Power Draw | 3 to 200W |
| Ambient temperature operation | -25° to +35° |
| AC input | 90 to 250V, 50-60Hz (Neutrik PowerCon Blue) |
| DC input | Direct V-Lock batteries mount – 14V/26V – 10A/8A |
| Radio interface | Bluetooth 4.2 (mobile app for iOS and Android) |
| DMX interface | DMX512 In/Out XLR 3pin |
| Cable type | 5 meters, ultra-flexible Neoprene® |
| Chassis power-in connector | Neutrik® PowerCon 20 Blue |
| Weight | 1.8kg |
| Dimensions | L 310mm W 135mm H 155mm |
| Yoke connector type | C-Stand, 16mm junior female and 28mm TV male spigot |
Powering Rapida with a V-Mount Battery – Technical Requirements
To operate Maxima Rapida safely and at full performance when using V-Mount batteries, it is essential to choose batteries with the correct constant current discharge capacity (also known as continuous load).
- 14.8V batteries: require a minimum of 10 Amps of constant current
- 26V batteries: require a minimum of 8 Amps of constant current
This value differs from peak load or max current — it must represent the current the battery can deliver continuously, regardless of charge level. Using batteries below these thresholds may cause malfunction or permanent damage to both the light and the battery.
If you’re unsure about your battery’s specifications, we recommend:
- Reviewing the manufacturer’s datasheet or label
- Referring to the Maxima Rapida manual for our list of compatible batteries
- Contacting Maxima Support to confirm compatibility
