The secret to MAXIMA 3 MKII power is a new generation COB LED combined with an advanced thermal management system. Advanced thermal simulations helped us optimize LED efficiency and develop a special heatsink made of pure copper: this heatsink allows for a terrific increase in luminous efficiency without compromising LED life span. A cooler LED means a larger power output and a more stable, linear color rendition across the whole dimming range.
Maxima 3 MKII specifications
| Led source | COB LED |
|---|---|
| Luminous Output | 34000 lumens |

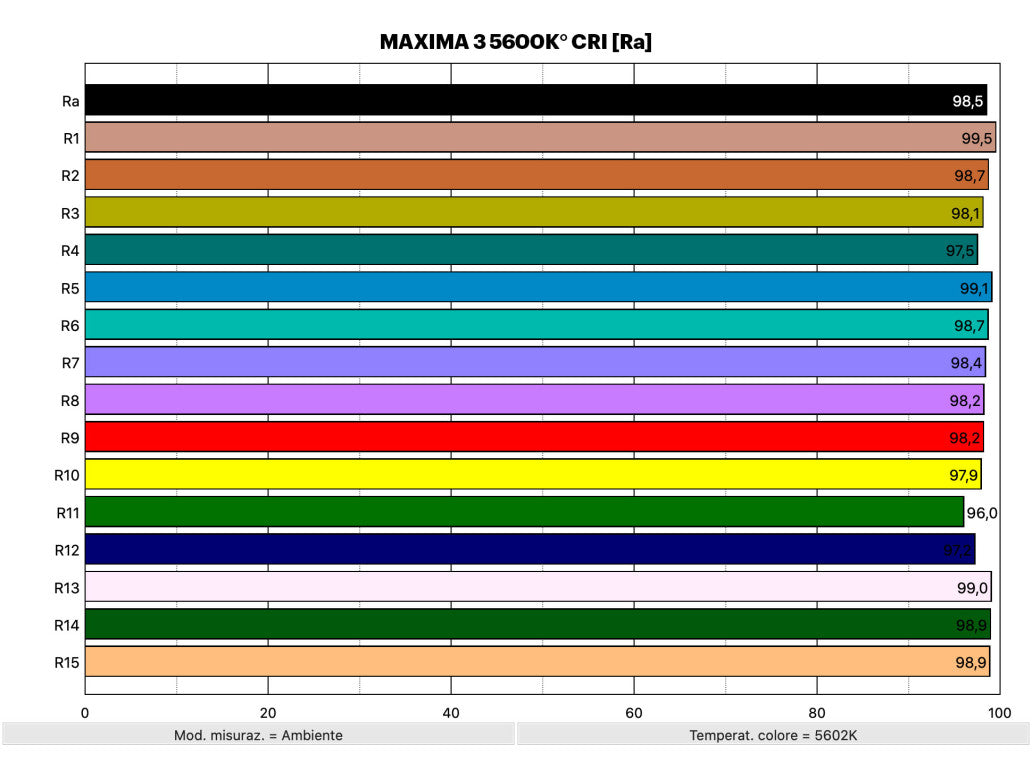

| Color rendition CRI | 98.6 |
| Color rendition R9 (red) – R12 (blue) | 98 – 97 |
| Color rendition TLCI | 100 |
| Engine | PowerCore Copper Heatsink, 30 forged fins (patented) |
| Processor | 32-bit Arm® Cortex®-M7 |
| Optical system | Focusable 200mm (8”) Fresnel lens, accessory Bowens and Pro Foto rings |
| Cooling | Full-copper heatsink |
| Noise level SILENT MODE | 19dBa (inaudible) |
| Noise Level REGULAR MODE | 26dBa |
| Noise Level BOOST MODE | 29dBa |
| Power Draw SILENT MODE | 0 to 180W max |
| Power Draw REGULAR MODE | 10 to 270W max |
| Power Draw BOOST MODE | 270 to 320W max |
| Ambient temperature operation | -25° to +35° |
| AC input | 90 to 250V, 50-60Hz (Neutrik PowerCon Blue) |
| DC input | Maxima Battery Box only (Neutrik PowerCon White) |
| Radio interface | Bluetooth 4.2 (mobile app for iOS and Android) |
| Cable type | 5 meters, ultra-flexible Neoprene® |
| Chassis power-in connector | Neutrik® PowerCon 20 Blue |
| Weight (without fresnel reflector) | 4.2Kg |
| Weight (with fresnel reflector) | 5.4Kg |
| Length (without fresnel reflector) | 370mm |
| Length (with fresnel reflector) | 520mm |
| Yoke connector type | Universal, 16mm junior female and 28mm TV male spigot |
| Certification | RoHS, CE |
| LED color temp | 3200K, 5600K |
