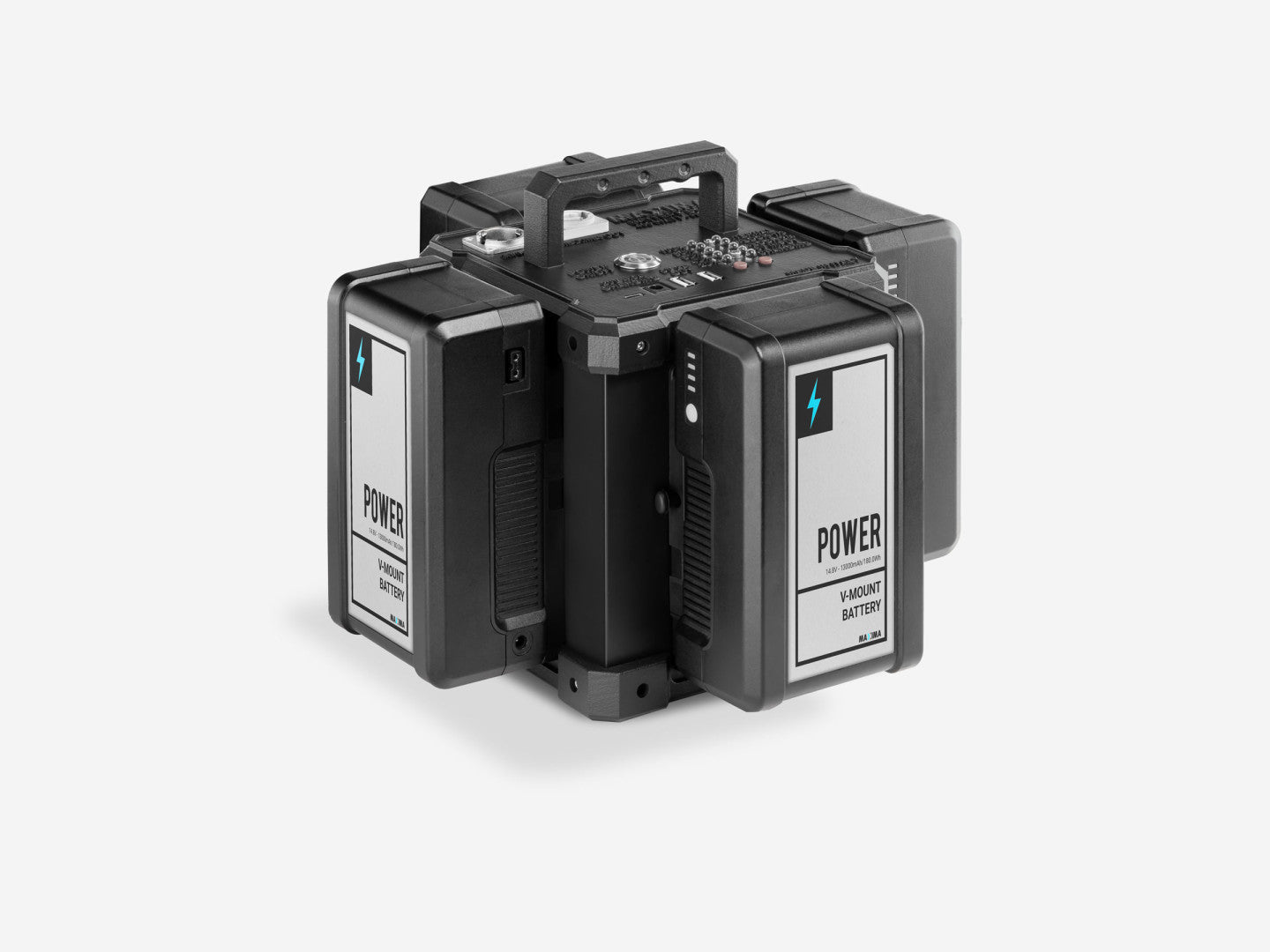

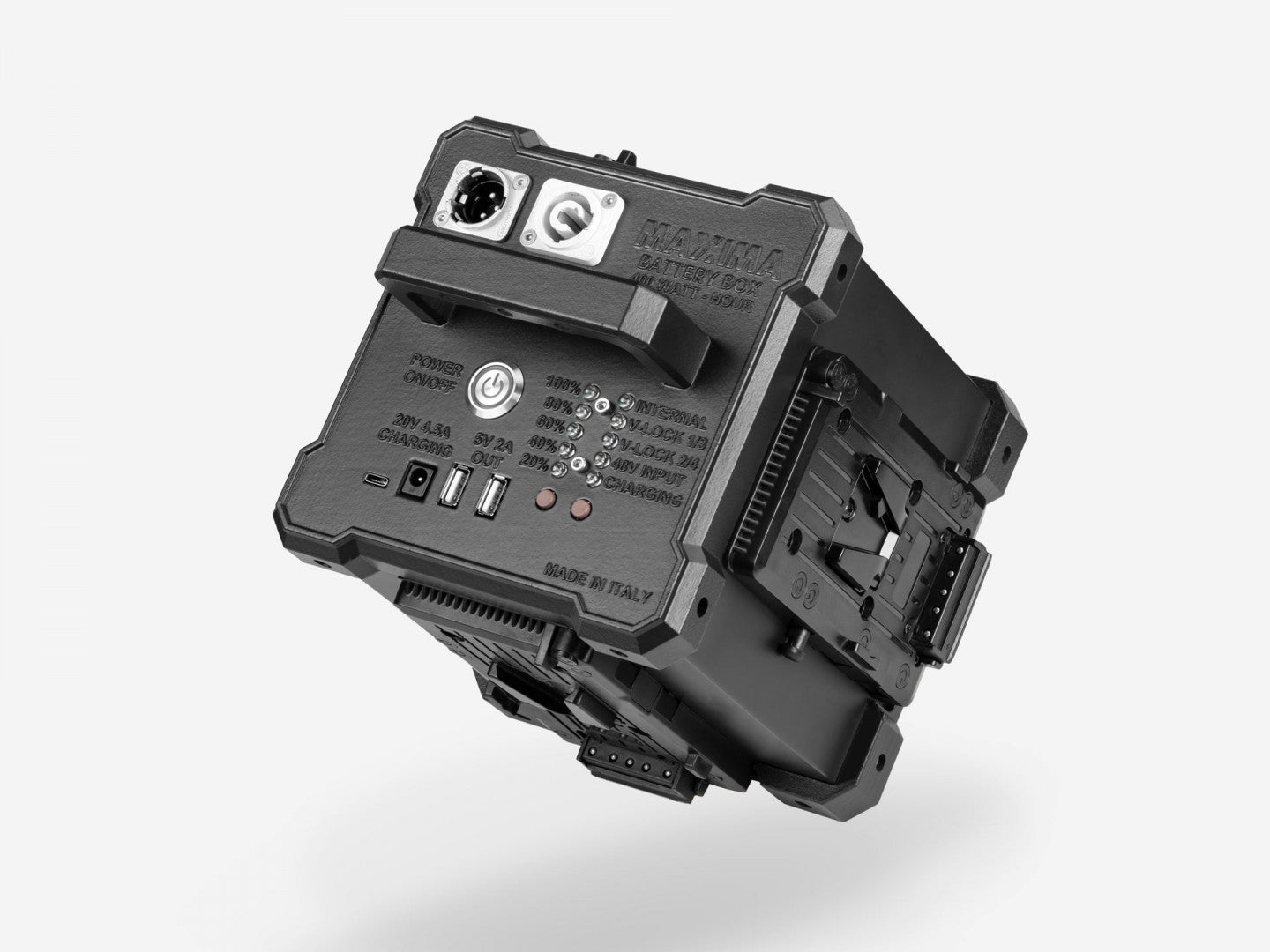

The Maxima Battery Box is both a portable rechargeable battery capable of powering Maxima units on the go via the internal 400Wh battery or by using up to four V-Mount battery. In addition, the Maxima BatteryBox 36-75 Volt input allows for pass-thru operation with external power banks or other dedicated power solutions. The Maxima BatteryPack allows for full power usage of the unit, without any power limitation.
Maxima Battery Box specifications
Compatibility | Maxima 3, Maxima 3 Pro-foto Native, Maxima 6 GaN |
---|---|
Power source | 400W/h internal battery, 4x V-lock slots, 48V in 8A (Arri XLR pinout) |
Output (to maxima) | 500W max |
Output (usb) | 2x USB 5V 4A |
Input connector (recharging) | PD USB-C (84W minimum), Maxima USB-C Power Supply (included) |
Input connector (power source) | 48V 8A Arri XLR |
Input v-lock (power source) | 4x V-mount shoes (12V 10A) |
Internal battery discharging time | 4h and 30 minutes (supplied 90W charger), 2h and 50 minutes (Macbook Pro 16” 140W USB-C charger) |
Control panel indications | Internal battery status and charging, selected power source, ON/OFF |
Quality | Design and manufactured in Italy |
